Full-HD Wireles COFDM Video Transmitter Board
DS-HBD02
Introduction of full hd 1080p cofdm module board modem:
H.264 COFDM HD wireless video transmitter module with its small volume and low power consumption and H.264 compression encoding, COFDM modulation, highly integrated embedded design ,single-chip digital modulation processing technology and ultra-linear digital pre-distortion (Digital Predistortion) RF design,which combine digital capture, encoding, modulation and fullband RF output in one that fully support HD1080P HD transmission. For hd digital live broadcast, defense, public security, armed police, security and other areas of applications.Its excellent design can help you more convenient and efficient completion of COFDM standard hd wireless video transmission equipment.
Specification:
| Model | HD COFDM modulation board |
| Work voltage | DC12V |
| Work current | 400mA |
| Video input | CVBS:Support D1 SD resolution |
| HD-MI:support HD1080P,720P,576,480 |
| SDI:Support HD1080P,720P,576,480,With audio de-embedding |
| Bandwidth | 2/2.5/4/8MHz |
| RF interface | SMA |
| Frequency | 300~900MHz(step 1MHz adjustable)Optional International Edition,support 138MHz~4.2GHz Output |
| Output power | -30dBm~0dBm(step 1dB adjustable) |
| Encryption | AES |
| Modulation | COFDM , 2K |
| Video Compression | H.264 |
| Parameters control method | Through the LCD control panel can set up related parameters |
| size | 120*65*15mm |
Product Overviews

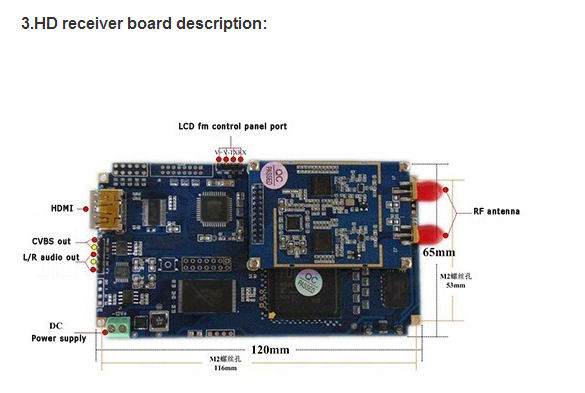

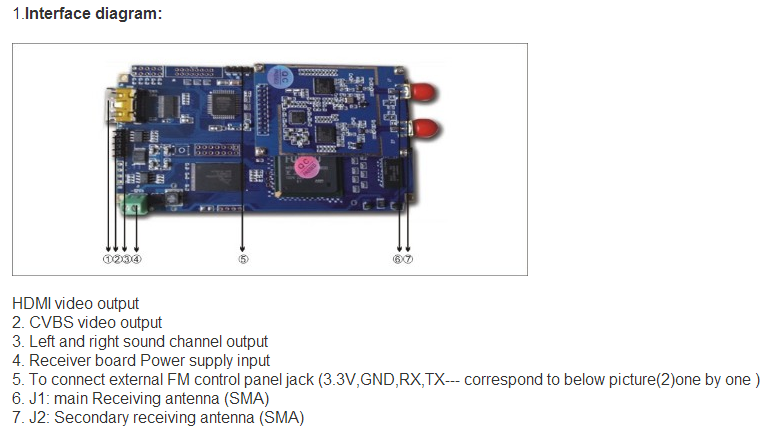

HD COFDM receiver board
Display as following :
"State" stand for the strength of received signal,the greater the percentage, the stronger the signal;
"Freq" stand for the HD receiver frequency.
"Band" disply the bandwidth, 2/2.5/4/ 8M are for your optional; HD is commonly 4M.
"AES" are encryption Status;OFF means “NO”,ON means “YES”.
