Unmanned Ground Vehicles HD Video Transmitter with COFDM Modulation 10km NLOS

Name: Unmanned Ground Vehicles HD Video Transmitter with COFDM Modulation 10km NLOS
Brand: Ding Shen
Price: 1 USD

Brand Name : Ding Shen

Model Number : DS-FDD20W

Place of Origin : Guangdong, China

MOQ : 1 Set

Price : negotiation

Payment Terms : T/T

Supply Ability : 3,000pcs per month

Delivery Time : 3-7 works days

Packaging Details : International packing

Frequency : 300-900MHz option,1.2G/2.4G/5.8GHz

Power supply : DC11-14.5V/1.9A

Modulation : COFDM

Weight : 5.1Kg

Size : 220*275*78mm

Contact Now

Wireless ip network equipment 5.8G/2.4GHz outdoor wireless bridge 50km.
DS-FD020VM duplex IP transmitter adopts the latest cofdm modulation , and FDD(frequency division duplexing) technology. The downlink and uplink frequency of DS-FD020VM Ethernet IP transceiver are adjustable and customized to meet different countries’ users’ requirements.

Integrated with Ethernet port, the DS-FD020VM is suitable to connect any IP-based devices, like IP camera, computer, etc..to achieve microwave wireless IP video or other data transmission and communication. There is also with serial ports, RS232 with TTL protocol for remote wireless radio link.

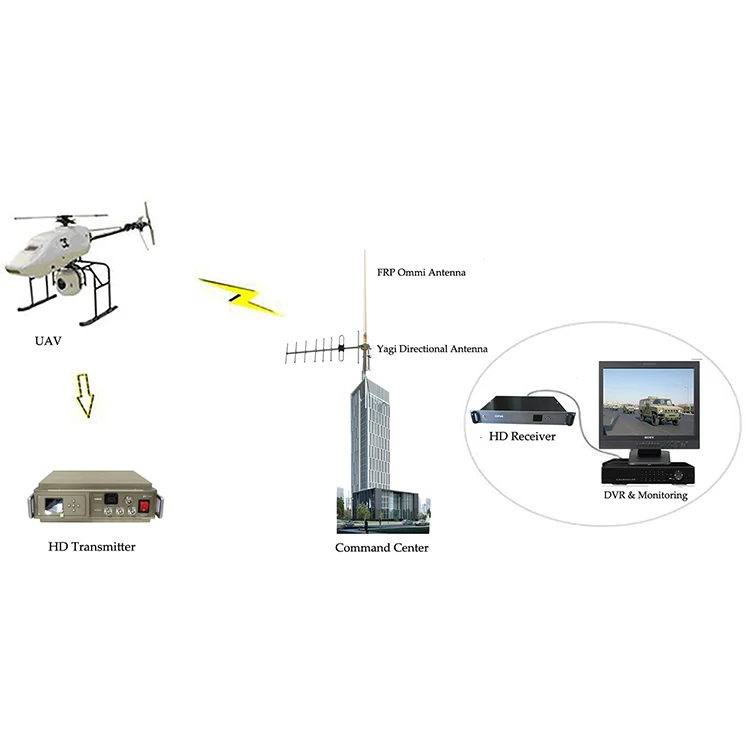

With powerful 15~20W adjustable RF power, the DS-FD020VM performs well in long range NLOS video and data transmitting and receiving in fully duplex mode. The DS-FD020VM IP transceiver has strong anti-jamming features to make it works very stable under complex environment, like in city/urban area. It's suitable for police vehicle patrolling, vessel wireless link on sea, or heavy UAV for over 150km range.

Specifications:

Frequency	300-900MHz option,1.2G/2.4G/5.8GHz
RF power	15-25Watt(adjustable)
Power supply	DC11-14.5V/1.9A
Modulation	COFDM 2K QPSK
RF Bandwidth	4/8MHz(adjustable)
Delay time	Only 200ms
FEC	1/2 2/3 3/4 7/8
Guard Interval	1/32 1/16 1/8 1/4
Data Encryption	AES 128/256 Bits
Max speed	450km/h

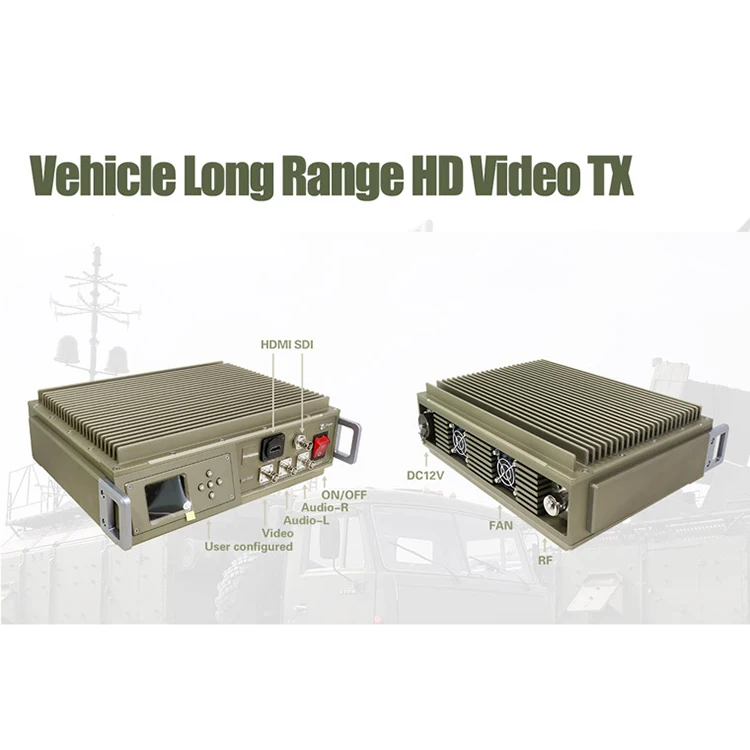

Video Input	BNC: D1 standard definition
	HDM-I: HD1080I/1080P, 720P, 576, 480
	SDI:HD1080I/1080P, 720P, 576, 480
Video compression format	H.264/H.265
Video Resolution	180p/1080i@60fps, 1920*1080 definition
RF Interface	N type
Work environment	-40℃~70℃
Video Format	PAL/NTSC(self-adaption)
Transmission Distance	15km NLOS distance(ground to ground) 20km-35km LOS distance(on sea)
Size	22027578mm
Weight	5.1kg
